Center Control Cover

Dell™ Latitude™ D610 Service Manual

  Removing the Center Control Cover

  Installing the Center Control Cover

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as the back panel) on the computer.

Removing the Center Control Cover

1. Follow the instructions in "Preparing to Work Inside the Computer."


2. Open the display all the way (180 degrees) so that it lies flat against your work surface.

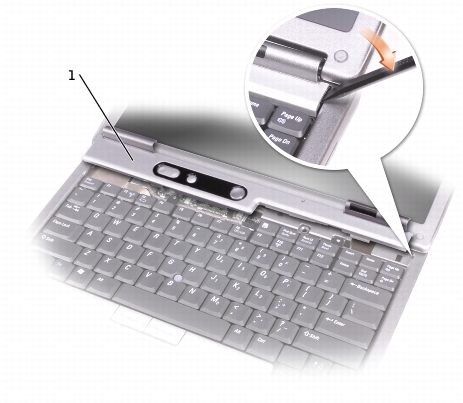

3. Starting on the right side of the computer, use a plastic scribe to gently pry up the center control cover.



1	center control cover

Installing the Center Control Cover

Gently snap the center control cover into place starting from left to right.
